Mobile Scalers
BTI offers a complete range of underground mining scaling vehicles:

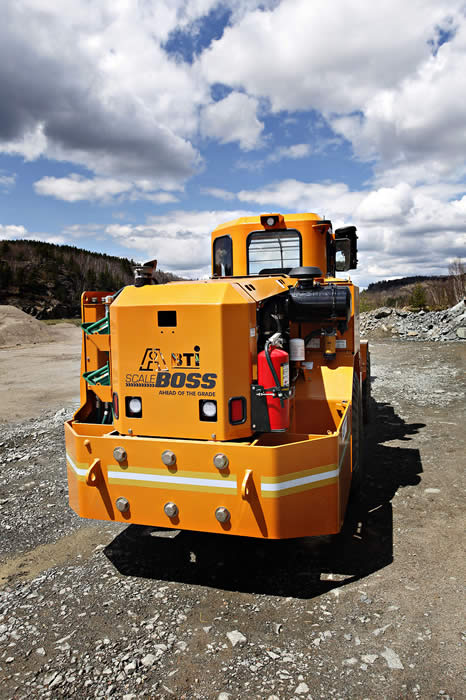

ScaleBOSS 3D Scaler:
Designed for 3 x 3 to 5 1/2 x 5 1/2 meter headings with heavy duty compact construction, the ScaleBOSS 3D is designed for a new generation of mining productivity and safety.
A five-axis boom offers enhanced flexibility and superior coverage where other scalers fail. The heavy-duty, compact construction makes it easy to maneuver while withstanding severe conditions.
Ergonomic ROPS/FOPS certified operator cabin and HVAC system maintains excellent personnel safety while providing high visibility and comfort.
Features & Benefits:
- Optimal for 3 x 3 to 5 1/2 x 5 1/2 meter headings
- Five-axis boom for excellent maneuverability
- Powerful and reliable Deutz diesel engine
- Spherical roller bearing articulation joint designed for long life
- Closed Loop Hydraulic Wheel Drive with separate reservoir, 4 wheel drive and traction control
- Spring Apply Hydraulic Release(SAHR)parking /emergency brake in each hydraulic wheel motor
- Closed-loop hydraulic wheel end service brakes via
- Pump-over-center swash plate
- Heavy-duty mining tires
- Load-sensing hydraulic circuit for boom and steering Functions
- Dedicated open-center hydraulic circuit for breaker fire Function
- 24Vdc / 80 amp electrical circuit with CANBus based system, proportional electro-hydraulic control and touch-screen human interface
- Ergonomic ROPS/FOPS certified operator cabin with excellent visibility and operator comfort, complete with HVAC
- Heavy duty fabricated boom structures with versatile feed, robust slew bearing, and dual rotary actuators for optimized coverage
- CX8SB (800 ft-lb class) scaling breaker

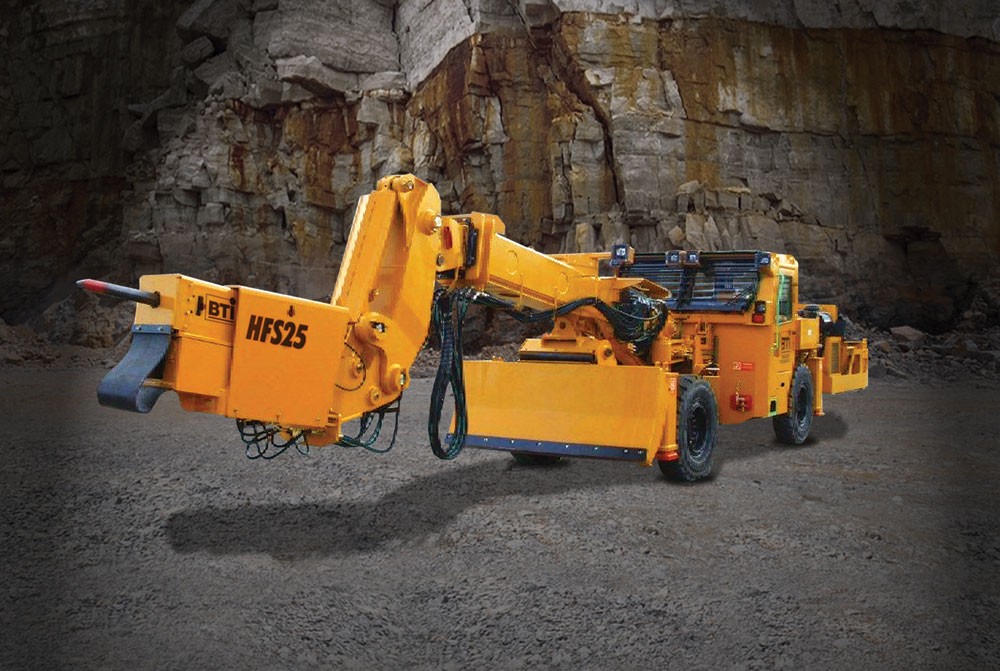

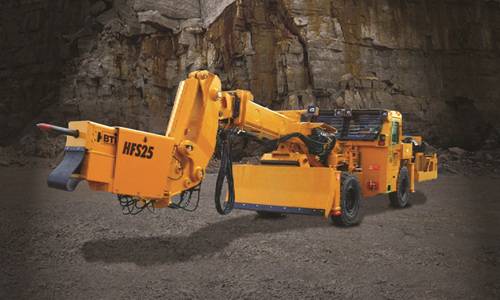

HFS Hammer Feed Scaler:
For safe and efficient mine scaling, trust BTI engineered mine scalers. Flexibility, manoeuvrability and variable breaker power to align with your scaling requirements.
Breaker Technology’s HFS (Hammer Feed Scaler) Series of Scalers are engineered and manufactured to handle key requirements of the scaling operation:
When testing seams or rock laminations, the tool will occasionally get wedged in the material. Withstanding the resulting prying loads requires a relatively large size breaker with a large diameter tool and heavier body. The BX8 provides a blow energy of 800 ft lbs and can be adjusted to suit the ground conditions to avoid problems from over-scaling. The hydraulic system is a two-circuit design; one complete system for the carrier and one for the breaker operation, making it quick and easy to identify and address maintenance issues and keep downtime to a minimum.
Shock loading to a boom system is common when a large rock falls unexpectedly onto the boom arm during the scaling process. The HFS Series Underground Scaler is ruggedly built to handle 1.5 T and abnormal loads during scaling. A heavy-duty telescopic boom knuckle comfortably withstands loads. The carrier is further enhanced with four hydraulically operated stabilizers which remove any stresses on the axles during scaling. For any carrier with a boom, stability and good weight distribution play a vital role in reducing shock loads, ultimately providing longer life and reduced maintenance.
All cylinders and the hydraulics are protected to avoid damage from the loose material. All cylinders and hoses are positioned under the boom or housed to protect from falling rock. A protective canopy or cabin ensures safety while operating from the operator’s seat. A remote control pendant for the boom and breaker is also available.
Features & Benefits:
- Similar to precise manual scaling, operators use sight and sound to evaluate scaling requirements. HFS Series Scalers are designed for mine ready application
- Durable BX8 breaker provides adjustable blow energy an oversized tool, ease of matching breaker output to scaling requirements
- Scaler Head with Hydraulic Extension, Swing & Tilt Three axis movement permits optimum scaler positioning to ensure only loose rock is scaled
- Telescoping & Knuckle Positioner provides high rigidity, torsional strength, telescoping extension and strategic guarding of hydraulics
- Scaler operates under a with Variable Control System to adapt to site conditions; this eliminates over-scaling; allowing for accurate ‘sounding’
- Easy set-up and operation in parked position with Heavy Duty Stabilizers or optional pusher blade. Allows for immediate removal of scaling material from traffic areas
HFS Series Underground Scalers Brochure PDF

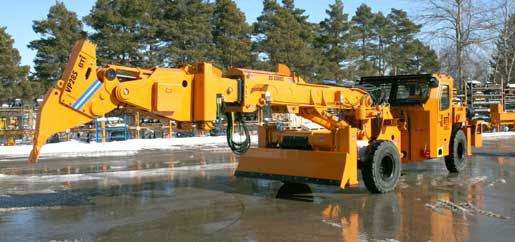

VPS Vibratory Pick Scaler:
For safe and efficient mine scaling, trust BTI engineered mine scalers. Flexibility, manoeuvrability and variable breaker power to align with your scaling requirements.
Features & Benefits:
- High mobility/high speed scaler
- +/-450 vehicle articulation
- Excellent operator visibility due to low profile engine shroud height
- Operator cab positioned mid-machine allows for excellent visibility for tramming and scaling
VPS16 Vibratory Pick Scaler PDF

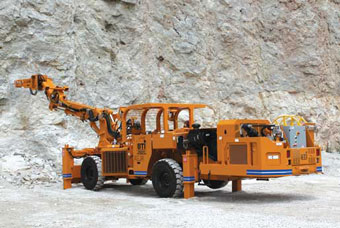

RMS18 Scaler:
Features & Benefits:
- High mobility/high speed scaler
- +/-45° vehicle articulation
- Excellent operator visibility due to low profile engine shroud height
- Operator cab positioned mid-machine allows for excellent visibility for tramming and scaling
- Self-leveling tube-in-tube stabilizers allow for quick set up and stable operation
- Heavy duty cross-section boom construction provides for superior strength and dexterity
