Rock Hammers

Rockbreakers - Hammers

Thiessen Team offers the full range of BTI Hydraulic Hammers (rockbreaker heads) from 800 ft lb to 16,000 ft lb class for the mining and constructions industries. The new generation BX and BXR Series Breakers are designed to provide maximum productivity and reliability. Thiessen markets, services and supports this equipment in open pit and underground mine applications throughout western North America.

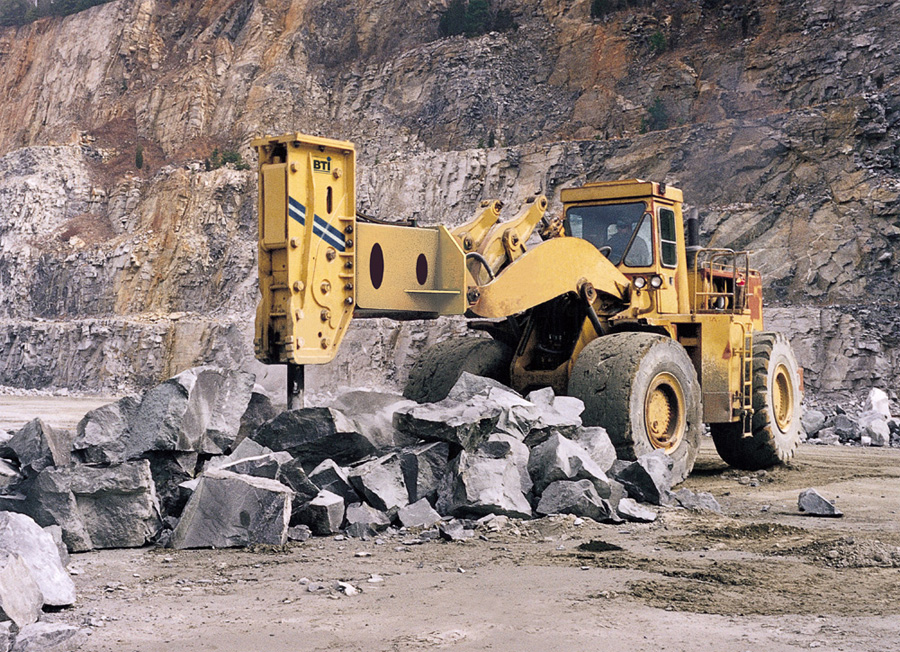

BTI Hydraulic Breakers mount on stationary pedestals, excavators, wheel loaders, skid steers and tractor backhoes and work across a wide range of applications including mining, quarry, trenching, construction, road building, demolition, and recycling.

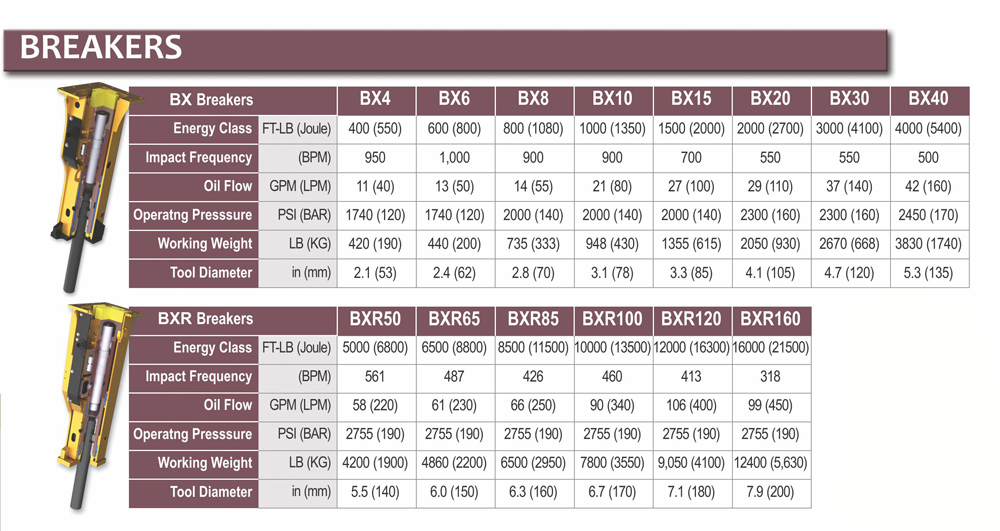

BTI Rockbreaker Line Up (BX through BXR Series)

Video: Hydraulic Breaker Operation & Maintenance

BXR Series Hydraulic Breakers

The 5,000 to 16,000 ft lb new generation BXR Series Hydraulic Breakers manufactured by BTI offers an outstanding power to weight ratio, and an exceptional oil regeneration system. This system is designed for harsh, continuous duty and demanding rock breaking applications.

Some features and benefits of the BXR Breaker are:

  • Two speed power controls (slow/hard for big/hard rock, fast for efficiency as rock breaks down)
  • Oil regeneration system increases blows per minute while maintaining the same energy
  • Constant blow energy and recoil absorption via a high volume nitrogen charged accumulator.
  • Achieve optimized impact energy and blows per minute, with the extra-long stroke pressure balanced piston combined with an efficient oil regeneration system.
  • Optimal impact energy with the BXR button nose piston design. Anti-blank fire interlock protects the front head and retainer pins

BX/BXR Series Breakers Brochure and Specifications (PDF 1.2MB)

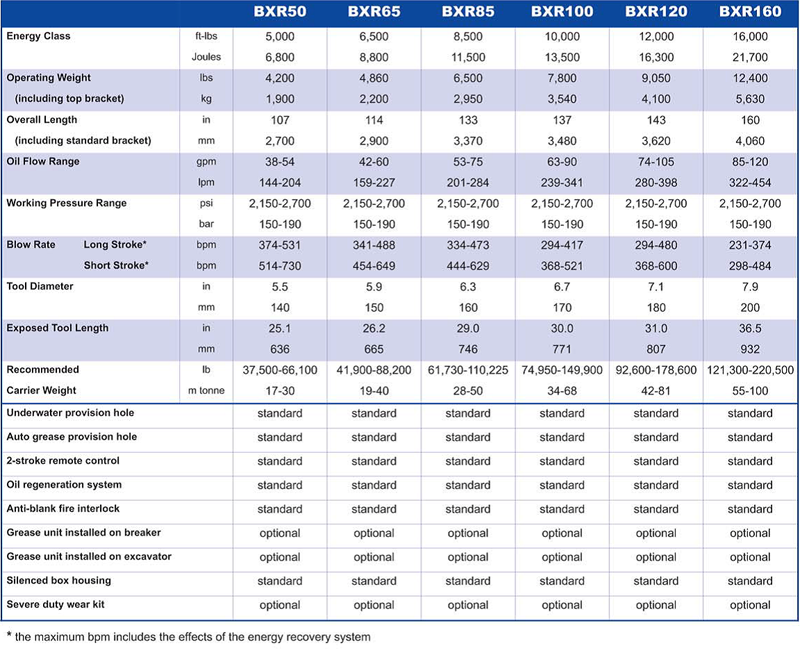

BXR Series Rockbreaker Line Up

Sizing the BXR Breaker for a mobile carrier


Model     Weight of mobile carrier in metric tonnes

The working weight of the carrier should be significant enough to form a stable unit with the breaker mounted, but also light enough to prevent overpowering the hammer when raking and maneuvering material. Once you find the applicable carrier options, you can check the hydraulic systems capabilities.

BX Series Hydraulic Breakers

The 400 to 4,000 ft lb new generation BX Series Hydraulic Breakers manufactured by BTI produces stable high-speed percussion, as well as exceptional value and durability for all rockbreaking applications in mining construction, and demolition.

Some features and benefits of the BX Series are:

  • Improved production with a breaker mounted manual high / low stroke selector (BX8-BX40)
  • High level of constant blow energy, due to a long stroke piston design, and anti-blank fire on/off selector (BX8-BX40)
  • Optimal sound dampening (BX6-BX40) creates less noise

BX/BXR Series Breakers Brochure and Specifications (PDF 1.2MB)

BX Series Rockbreaker Line Up

Sizing the BX Breaker for a mobile carrier

Model          Weight of mobile carrier in metric tonnes

The working weight of the carrier should be significant enough to form a stable unit with the breaker mounted, but also light enough to prevent overpowering the hammer when raking and maneuvering material. Once you find the applicable carrier options, you can check the hydraulic systems capabilities.
