Rockbreaking Equipment

Rockbreaker Systems (Booms)

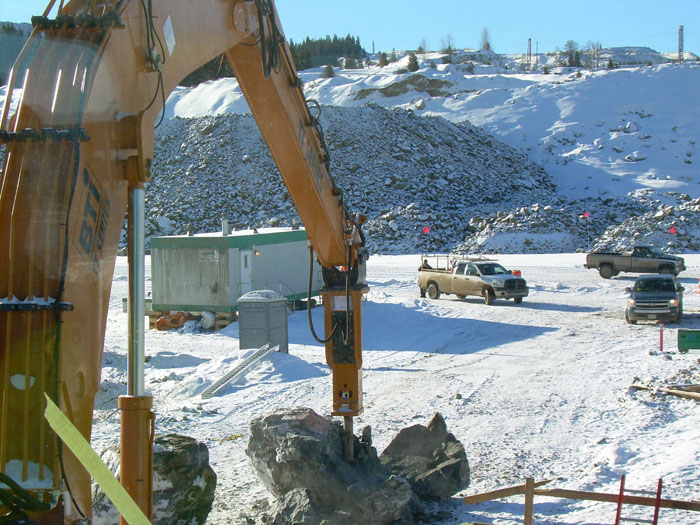

BTI and Thiessen Team offers a wide range of Rockbreaker Systems suitable for raking and breaking in both stationary and portable crushing plants. With boom reach capabilities of 10 ft to 58 ft, and up to 16,000 ft lb hammers, BTI has a rockbreaker system to match the job!

Jump to:

Pedestal Rockbreaker Systems
Portable Rockbreaker Systems
Mobile Underground Rockbreaker Systems

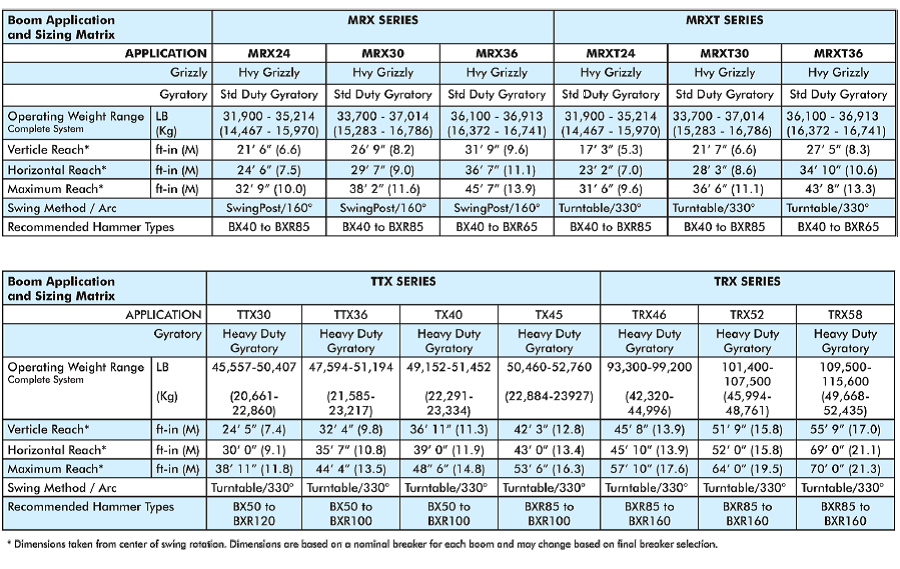

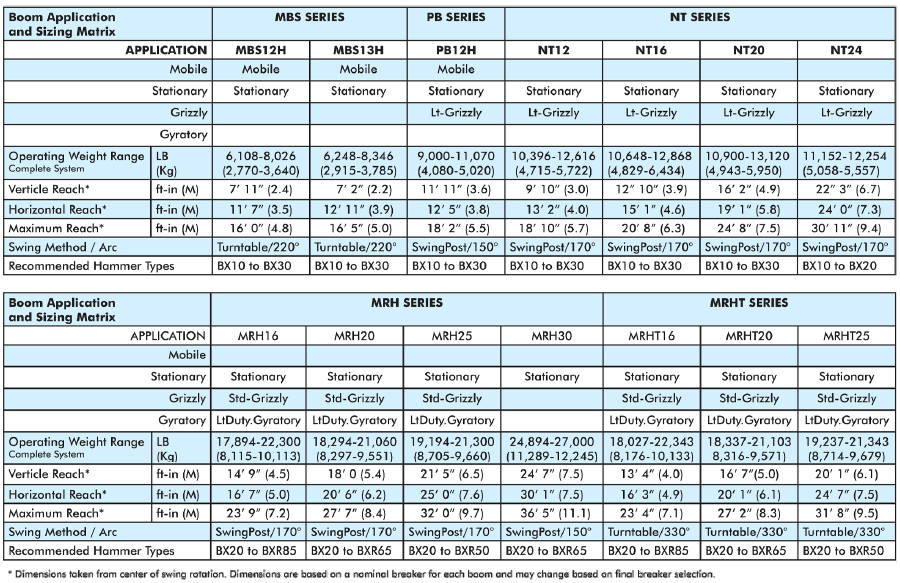

Rockbreaker Boom Systems Comparison Brochure (PDF 790KB)

Pedestal Rockbreaker Systems

Portable Rockbreaker Systems

Mobile Underground Rockbreaker Systems

Pedestal Rockbreaker Systems

TRX Series Pedestal Rockbreaker Systems

BTI has designed and developed the rugged, heavy duty, 330 degree hydraulic slew bearing swing design with dual hydraulic motors TRX Series Rockbreaker System for large stationary crushing plants. Engineered for grizzlies and gyratory crushers under extreme conditions where hard rock is common or a large area of coverage is required. They can be used for material handling applications.

  • Application: heavy duty gyratory
  • 48 to 58 ft boom length
  • 8,500 to 16,000 ft lb breaker range
  • 330 degree swing with dual hydraulic motor
Model Hammer model showing range: ft-lb (J)
TRX46 BXR85: 8,500 (11,525) thru BXR160: 16,000 (21,690)
TRX52 BXR85: 8,500 (11,525) thru BXR160: 16,000 (21,690)
TRX58 BXR85: 8,500 (11,525) thru BXR160: 16,000 (21,690)

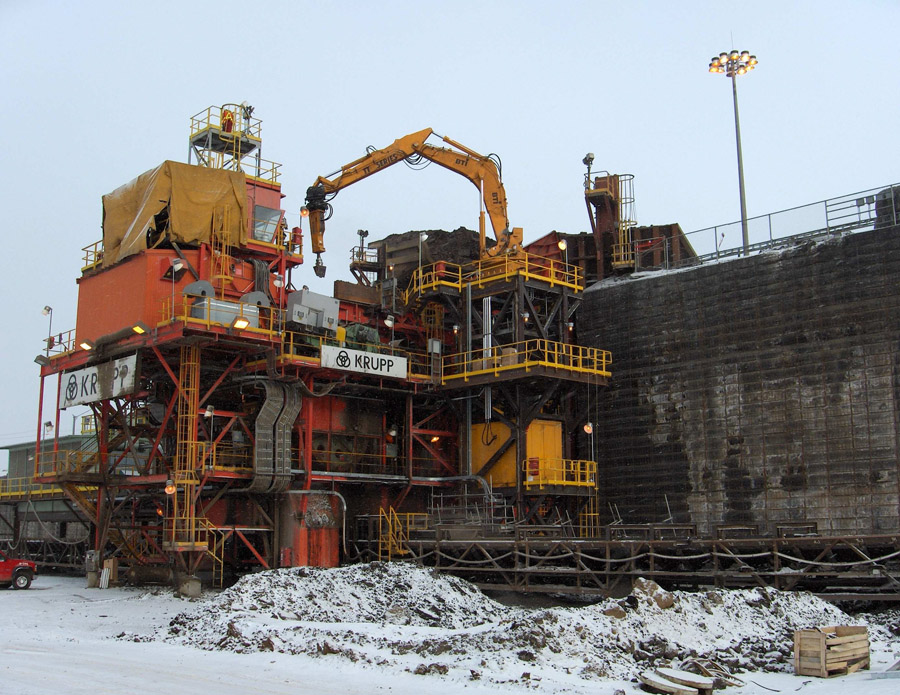

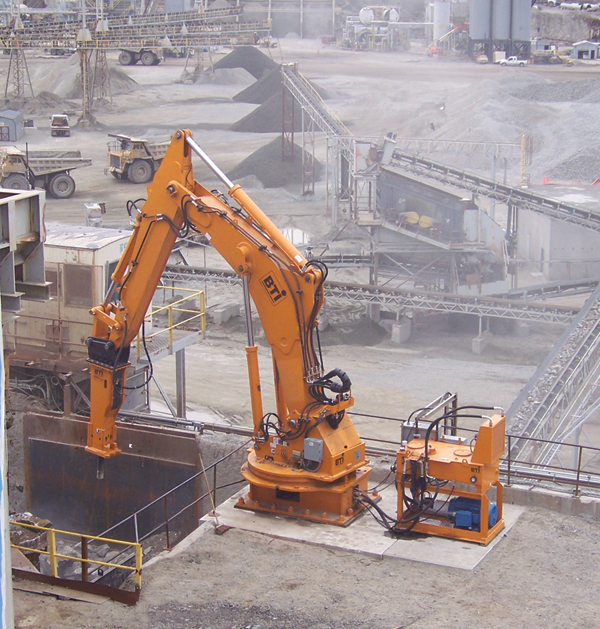

TTX Series Pedestal Rockbreaker Systems

BTI has designed and developed the rugged, heavy duty, hydraulic slew bearing swing design TTX Series Rockbreaker System for large stationary crushing plants. Engineered for grizzlies and gyratory crushers under extreme conditions where hard rock is common or a large area of coverage is required. They can be used for material handling applications.

  • Application: heavy duty gyratory
  • 30 to 45 ft boom length
  • 5,000 to 12,000 ft lb breaker range
  • 330 degree swing bearing design
Model Hammer model showing range: ft-lb (J)
TTX30 BX50: 5,000 (6779) thru BXR120: 12,000 (16269)
TTX36 BX50: 5,000 (6779) thru BXR100: 10,000 (13557)
TTX40 BX50: 5,000 (6779) thru BXR85: 8,500 (11524)
TTX45 BX50: 5,000 (6779) thru BXR85: 8,500 (11524)

TTX Series Brochure, Specifications, Options (PDF 700KB)

TTX Series

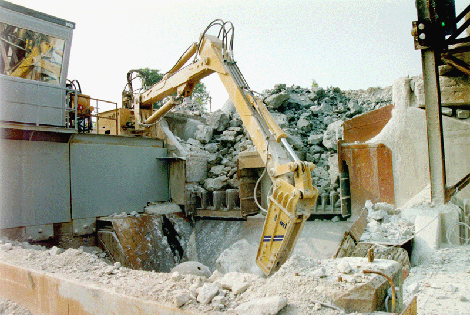

MRXT Series Pedestal Rockbreaker Systems

A heavy duty rockbreaker system, the MRXT Series Rockbreaker System features high strength steel construction, hydraulic slew bearing swing design and sealed turntable bearing for longer service life.

  • Application: heavy duty grizzly, standard duty gyratory
  • 24 to 36 ft boom length
  • 4,000 to 8,500 ft lb breaker range
  • 330 degree swing bearing design
Model Hammer model showing range: ft-lb (J)
MRXT24 BX40: 4,000 (5,423) thru BXR85: 8,500 (11,525)
MRXT30 BX40: 4,000 (5,423) thru BXR85: 8,500 (11,525)
MRKT36 BX40: 4,000 (5,423) thru BXR65: 6,500 (8,812)



MRHT Series Pedestal Rockbreaker Systems

High strength and performance are top priorities at stationary crushing plants. The MRHT Series Rockbreaker System features maneuverability, durability and reliability. This system features a hydraulic slew bearing swing design, massive swing frame, large base for support and oversize pins and hardened steel bushings for long life.

  • Application: stationary, standard duty grizzly, light duty gyratory
  • 16 to 25 ft boom length
  • 2,000 to 8,500 ft lb breaker range
  • 330 degree swing bearing design
Model Hammer model showing range: ft-lb (J)
MRHT16 BX20: 2000 (2711) thru BXR85: 8500 (11524)
MRHT20 BX20: 2000 (2711) thru BXR65: 6500 (8812)
MRHT2025 BX20: 2000 (2711) thru BXR50: 5000 (6779)
MRHT25 BX20: 2000 (2711) thru BXR50: 5000 (6779)

MRHT Series Brochure, Specifications, Options (PDF 495KB)

MRH Series Pedestal Rockbreaker Systems

High strength and performance are top priorities at stationary crushing plants. The MRH Series Rockbreaker System offers outstanding maneuverability, durability and reliability. This system features massive swing frame, large base for support and oversize pins and hardened steel bushings for long life.

  • Application: stationary, standard duty grizzly, light duty gyratory
  • 16 to 30 ft boom length
  • 2,000 to 8,500 ft lb breaker range
  • 170 degree, 2 cylinder swing design
Model Hammer model showing range: ft-lb (J)
MRH16 BX20: 2000 (2711) thru BXR85: 8500 (11524)
MRH20 BX20: 2000 (2711) thru BXR65: 6500 (8812)
MRH2025 BX20: 2000 (2711) thru BXR50: 5000 (6779)
MRH25 BX20: 2000 (2711) thru BXR50: 5000 (6779)
MRH30 BX20: 2000 (2711) thru BXR65: 6500 (8812)

MRH Series Brochure, Specifications, Options (PDF 472KB)

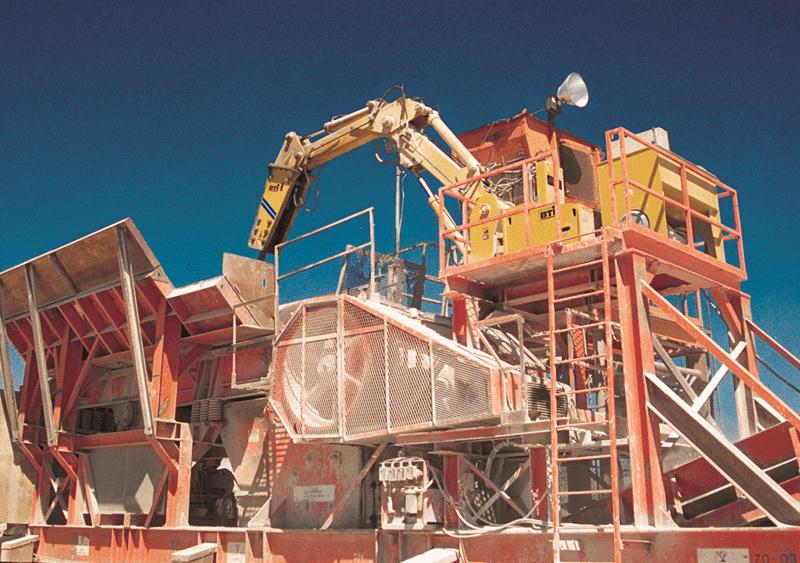

NT Series Pedestal Rockbreaker Systems

BTI offers the NT Series Rockbreaker System suited for soft-medium rock crushing applications. These systems feature a wide range of working lengths allowing the rockbreaker to rake and break materials while maintaining a constant flow of production through the crusher.

  • Application: stationary, light duty grizzly
  • 12 to 24 ft boom length
  • 1,000 to 3,000 ft lb breaker range
  • 170 degree, 2 cylinder swing design
Model Hammer model showing range: ft-lb (J)
NT12 BX10: 1000 (1356) thru BX30: 3000 (4067)
NT16 BX10: 1000 (1356) thru BX30: 3000 (4067)
NT20 BX10: 1000 (1356) thru BX30: 3000 (4067)
NT24 BX10: 1000 (1356) thru BX20: 2000 (2711)

NT Series Brochure, Specifications, Options (PDF 510KB)

NT Series

Portable Rockbreaker Systems

MBS Series/PB SERIES Portable Rockbreaker Systems

BTI's MBS Series and PB Series of Portable Rockbreakers with a low profile dependable boom design, narrow mounting requirements and rugged boxed sections offer an on-plant, road to operations, permanent solution to portable and mobile crushing applications. Providing a safe & productive rockbreaking tool.

      • Application: mobile, stationary (MBS12H); mobile, stationary, light grizzly (MBS13H, PB12H)
      • 12 to 13 ft reach
      • 1,000 to 3,000 ft lb breaker range
      • Up to 200 degree, enclosed slew bearing, hydraulic drive motor, gear reducer and slip brake for swing circuit
Model Hammer model showing range: ft-lb (J)
MBS12H BX10: 1000 (1356) thru BX30: 3000 (4067)
MBS13H BX10: 1000 (1356) thru BX30: 3000 (4067)
PB12H BX10: 1000 (1356) thru BX30: 3000 (4067)
Swing post style can be used on a light grizzly

MBS Series Brochure, Specification & Options (PDF 681KB)

MBS Series

Mobile Underground Rockbreaker Systems

TM Series Mobile Underground Rockbreaker System

BTI's TM Series of Mobile Rockbreaker is a heavy duty, low profile vehicle specifically designed for breaking oversize in underground applications.
TM Series Brochure (PDF 1.4MB)
TM12 Specifications (PDF 3.8MB)
TM15 Specifications (PDF 3MB)
